Probe Offset Shank Adapter 3MM, 5MM, 6MM & 8MM

GET A QUOTE
Adapters

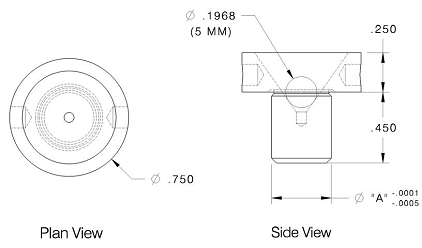

target pg28 schem
target pg28

Function
Adapter is used to measure the center of a hole on the surface using an Ø 3, 5 or 8MM probe. Zero offset or 0.5000 offset available.

Features
Removability features allow removal without damage. Used in conjunction with 3, 5 or 8MM probes in various CMM and PCMM applications.

Material
Adapter is made of 17-4 Stainless Steel for corrosion resistance and heat treated for durability.

Overall Target Dimensions
Adapter is .750″ in diameter. Shank is .450 long.

Distance to Center of SMR
Offset is 0.0000″ or 0.5000″

OffsetDescriptionPart Number
0.0000" Probe Offset Shank Adapter - A=3, 5, 6 or 8MM A-POSA-0000-B
0.5000" Probe Offset Shank Adapter - A=3, 5, 6 or 8MM A-POSA-5000-B

B = Shank Diameter – Available in .0625 – .5000
